Why Scissor Lift Safety Bellows Skirting Matters

• Worker Safety – Prevents access to dangerous pinch points and moving components.
• Debris Protection – Keeps dust, scrap, liquids, and contaminants out of lift mechanisms.
• Extended Equipment Life – Reduces wear on critical components and lowers maintenance costs.
• Regulatory Compliance – Supports OSHA and workplace safety requirements.
• Cleaner Work Environment – Improves facility cleanliness and operational efficiency.

Custom-Engineered Scissor Lifts for Your Application

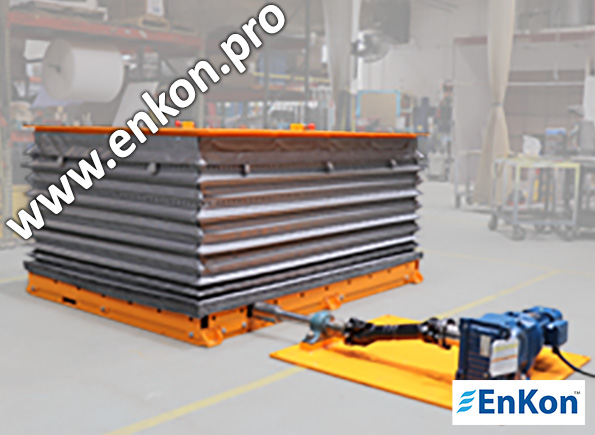

EnKon knows that each lift application is unique. It doesn’t matter if your lift is hydraulic, pneumatic, belt drive, or ball screw, every safety skirting system we create is tailored to your precise specifications.

We design lift skirting for:

• Scissor lift table size and travel height.

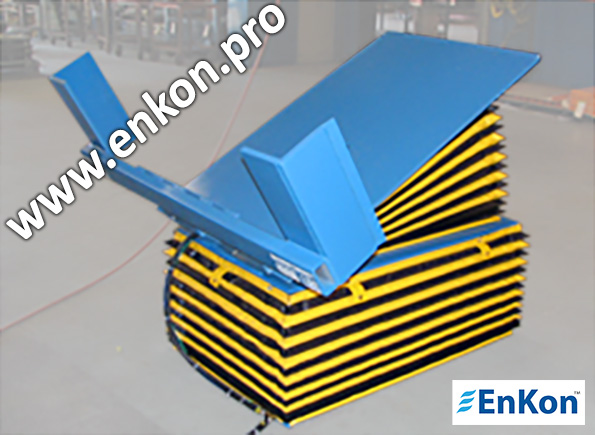

• Tilt applications.
• Exposure to chemicals, oils, heat, or abrasion.
• Frequency of operation and load conditions.
• Static-free environments.

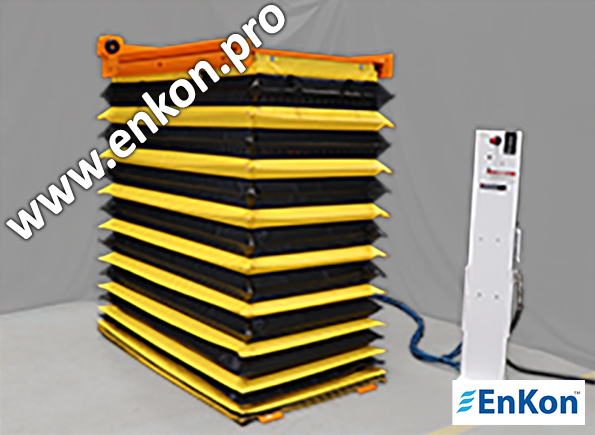

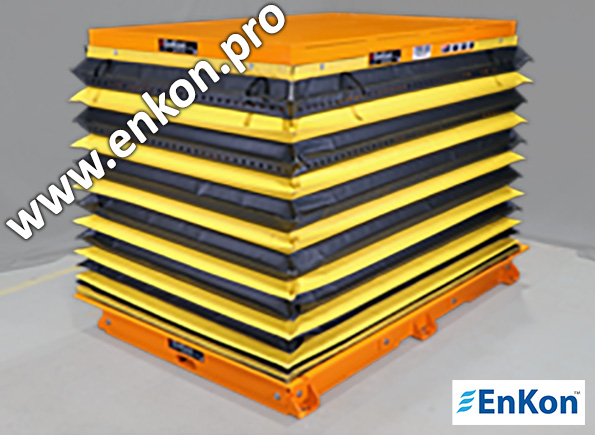

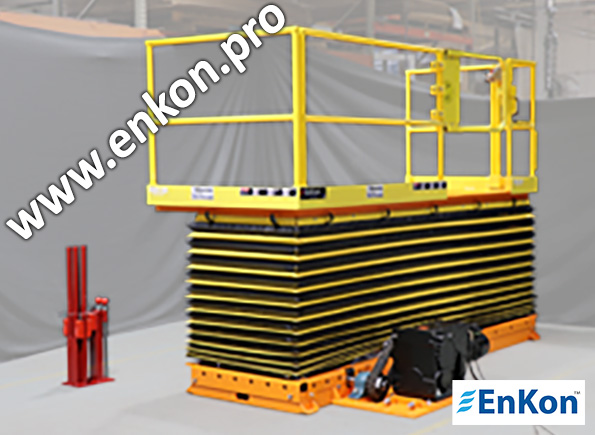

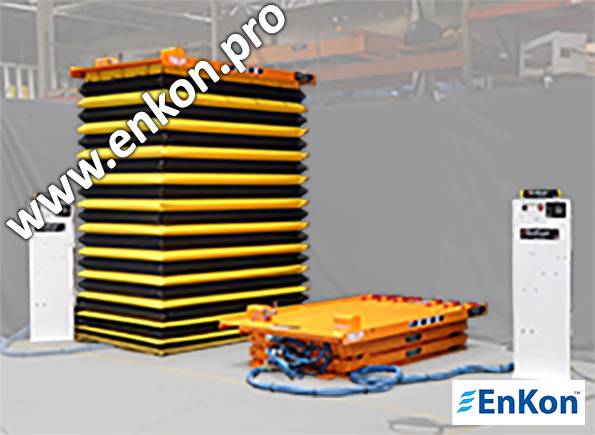

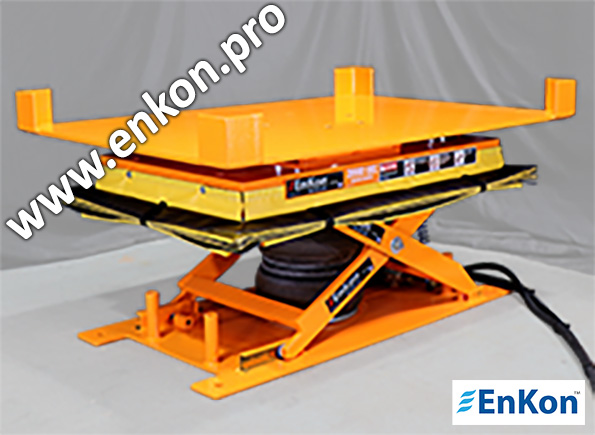

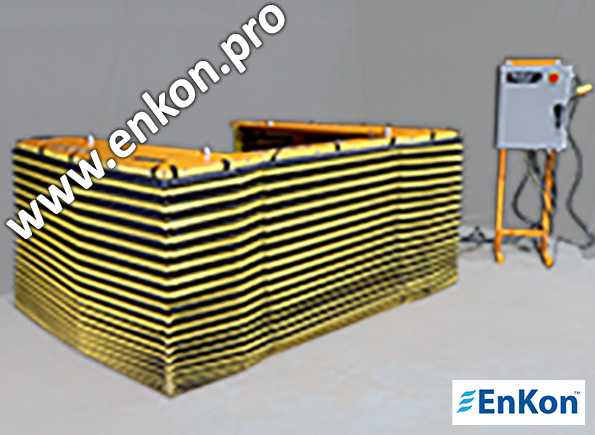

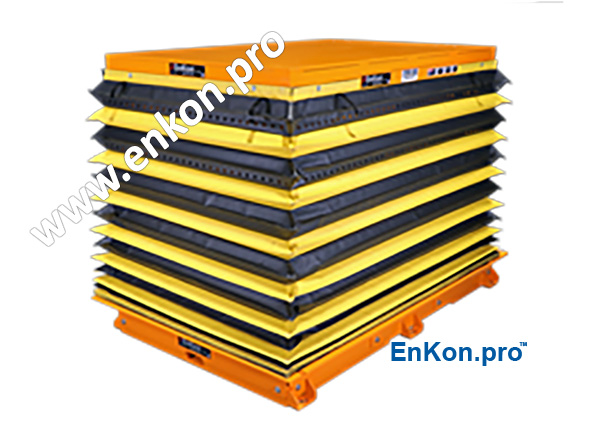

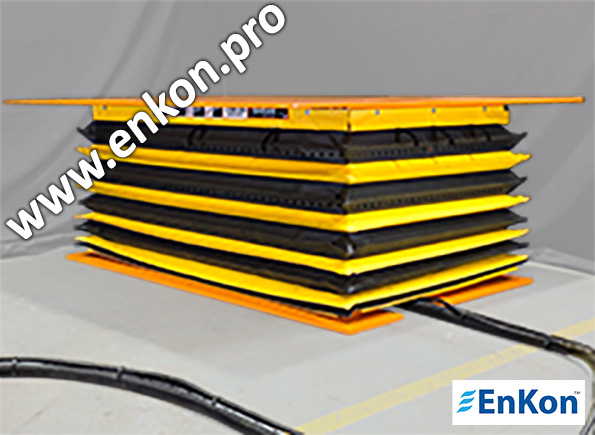

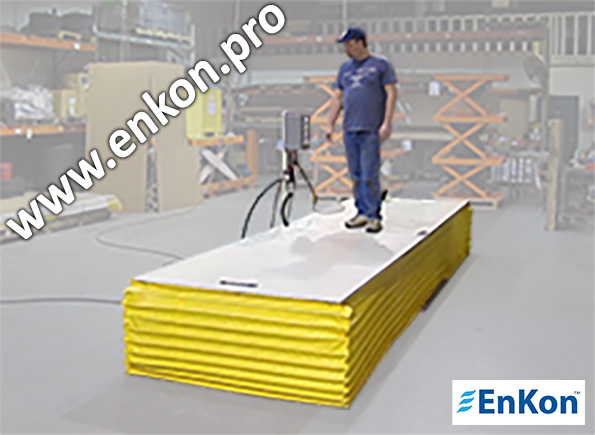

Design Features of EnKon’s Lift Safety Bellows Skirt

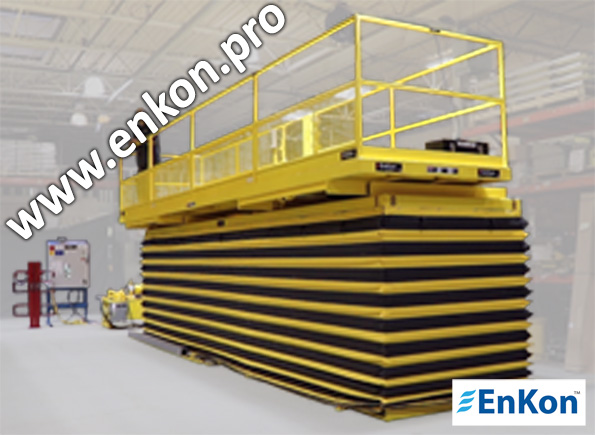

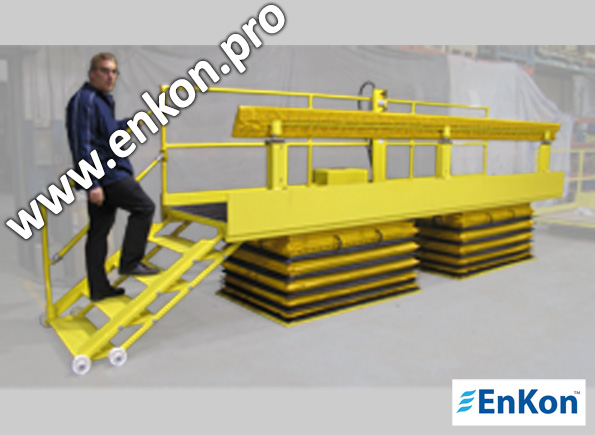

From compact platform scissor lifts to large industrial scissor lift tables, EnKon delivers a precise fit and reliable performance.

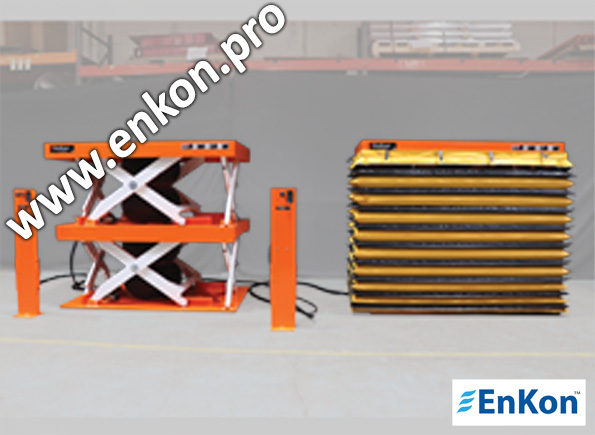

• Accordion-style skirting for smooth extension and retraction.
• Reinforcing metal rods installed in every other convolution to maintain the conformity of shape as the lift table raises and lowers over thousands of duty cycles.
• One skirt corner's entire height is fastened with Velcro for easy wrap-around installation for replacement safety bellows.
• Velcro and bolt mounting system for secure, long-term use.

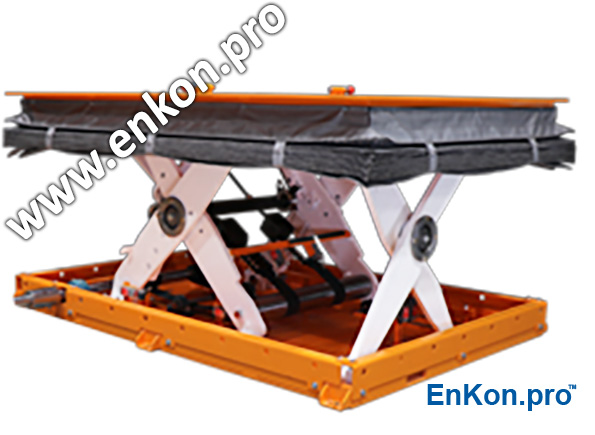

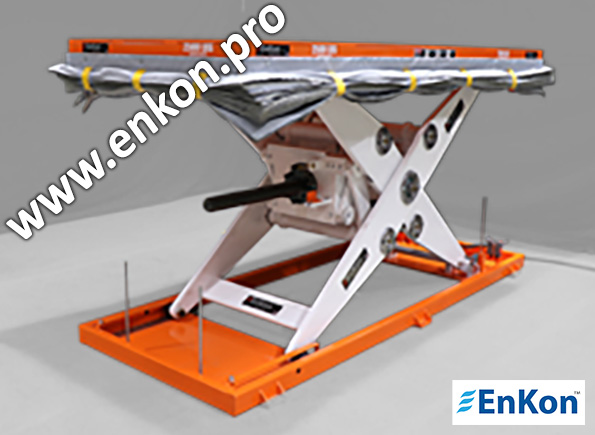

• Integrated maintenance ties hold the skirt in an upraised position when maintenance is performed.
• Vent holes at the top of skirting allow air to escape as the lift is lowered to prevent bellowing.

Applications for Scissor Lift Table Skirts

EnKon's scissor lift table enclosures are trusted across industries, including:

• Manufacturing and assembly lines.
• Automotive plants.
• Warehousing and distribution centers.
• Food processing facilities.
• Military industry.
• Aerospace and heavy equipment operations.

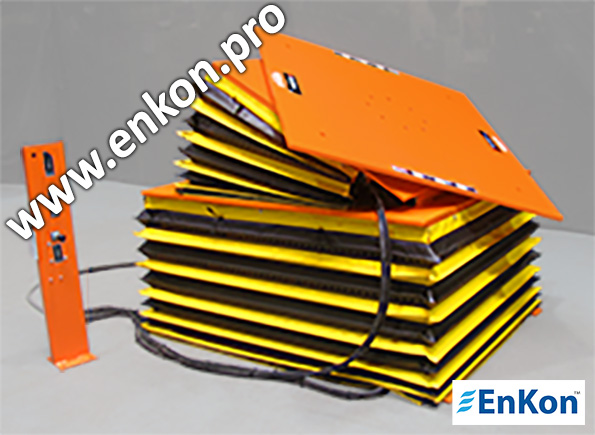

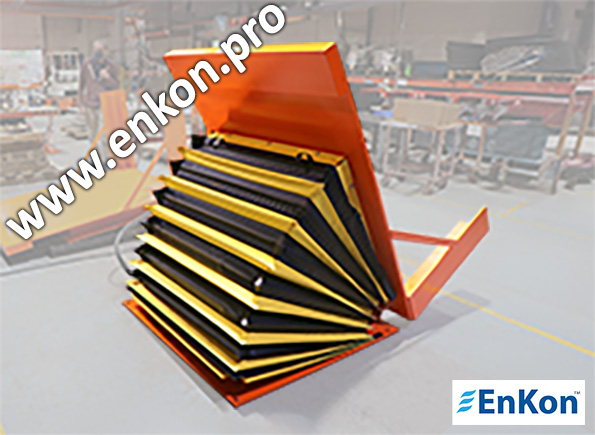

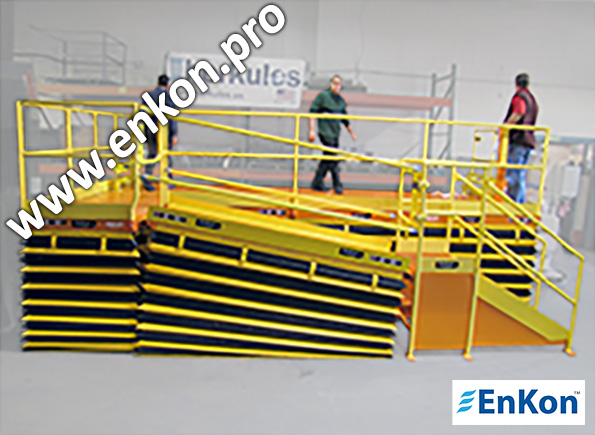

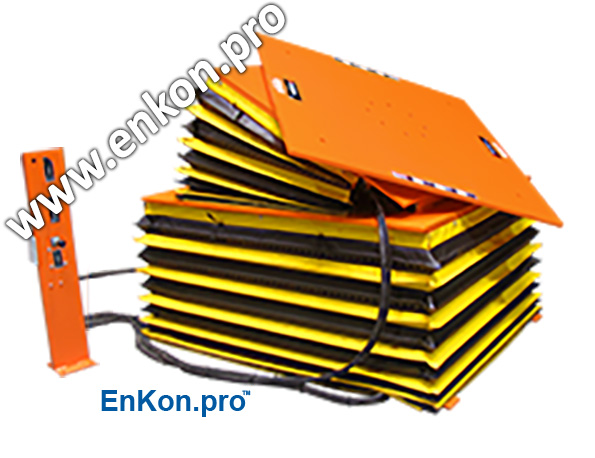

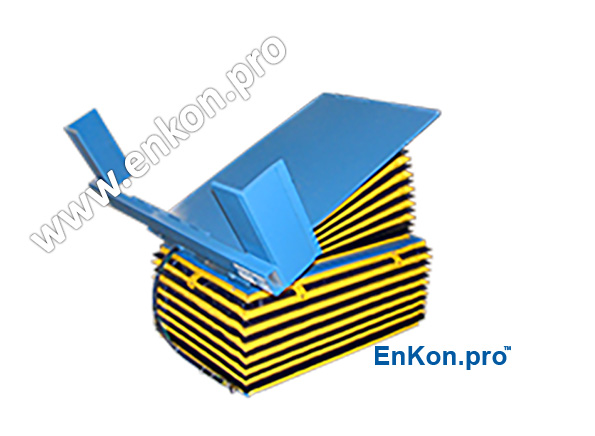

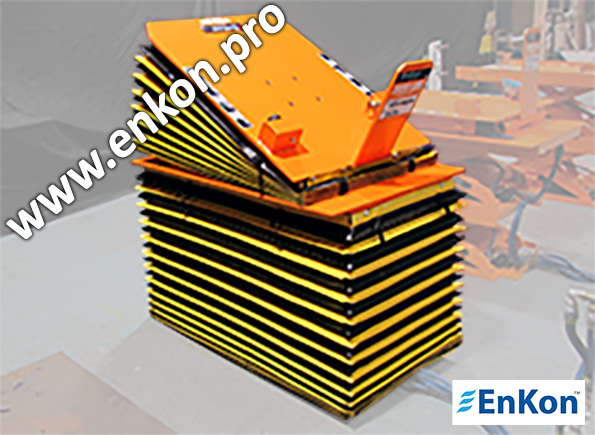

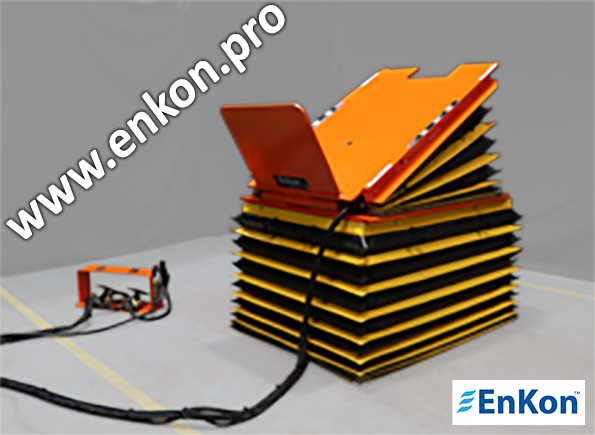

Scissor Lift or Tilt Safety Bellow Skirting Options

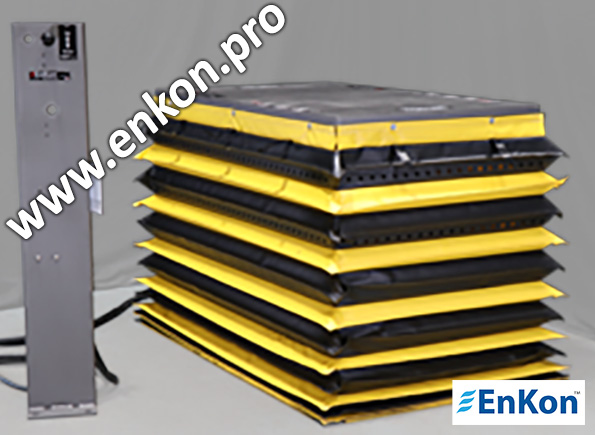

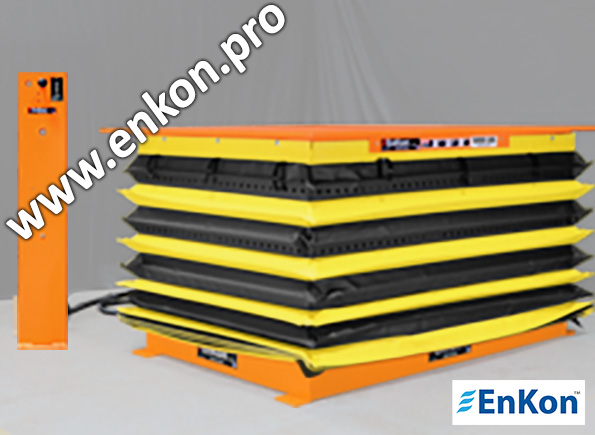

EnKon's standard safety skirt features black and yellow heavy duty 23oz. vinyl with 3" folds.

Available options include:

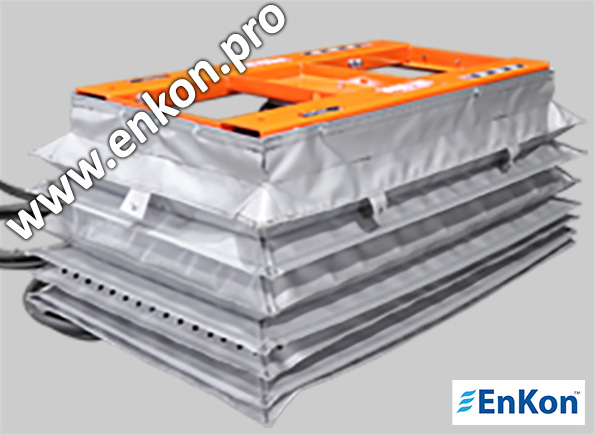

• Silicone-coated Kevlar skirting material for welding applications.
• Silicone-coated Fiberglass skirting material for welding applications.
• 1", 2" or 3" folds.
• Custom colors.
• Steel reinforcement rods.
• Fire retardant.

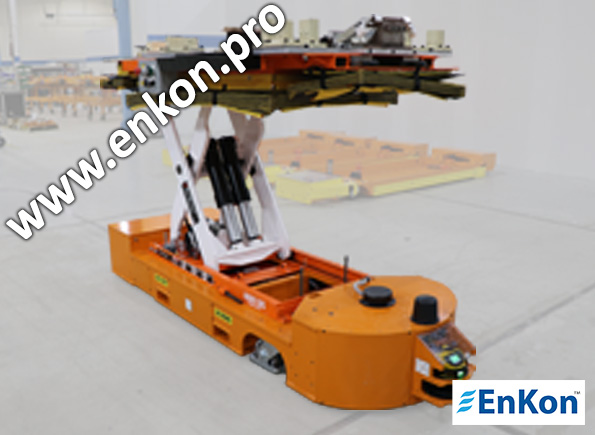

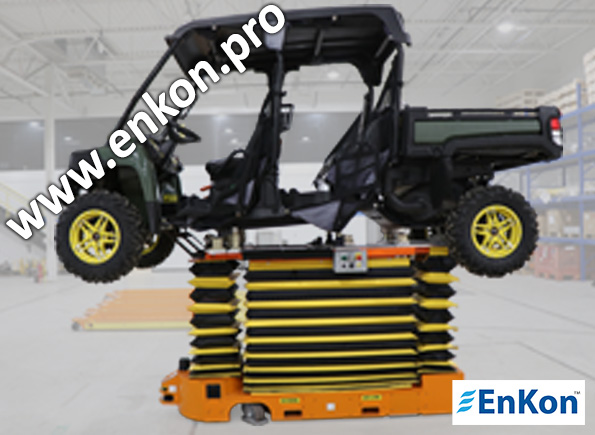

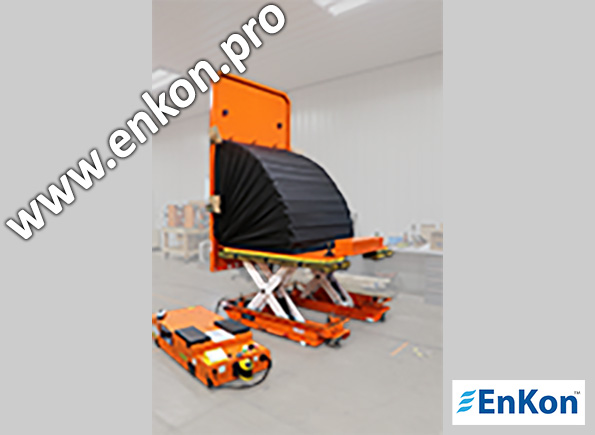

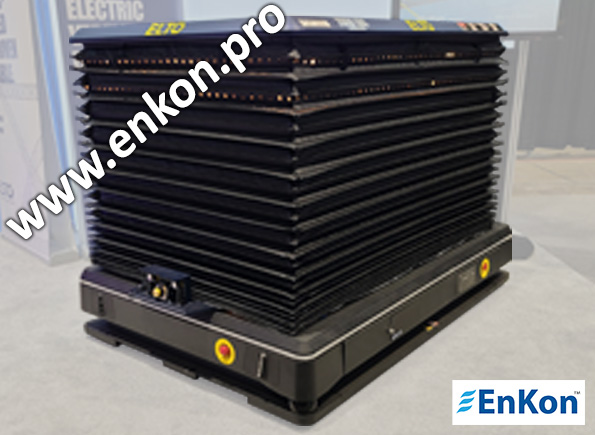

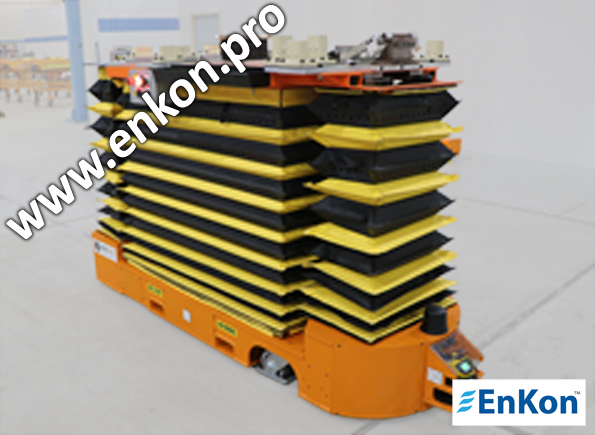

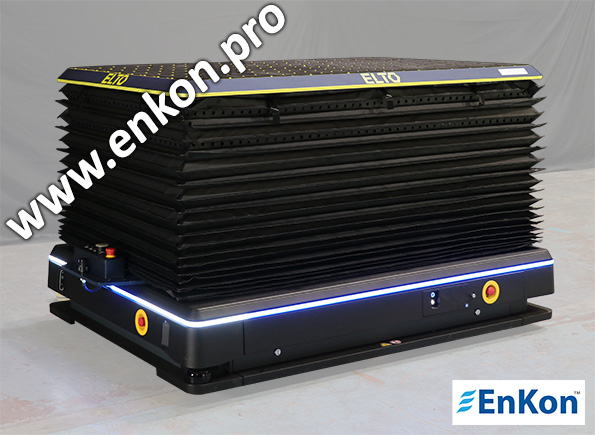

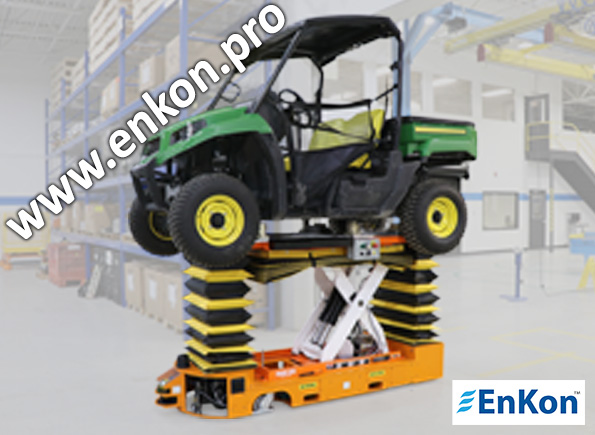

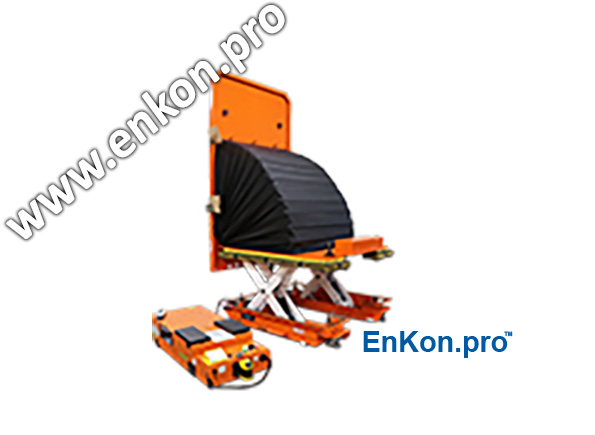

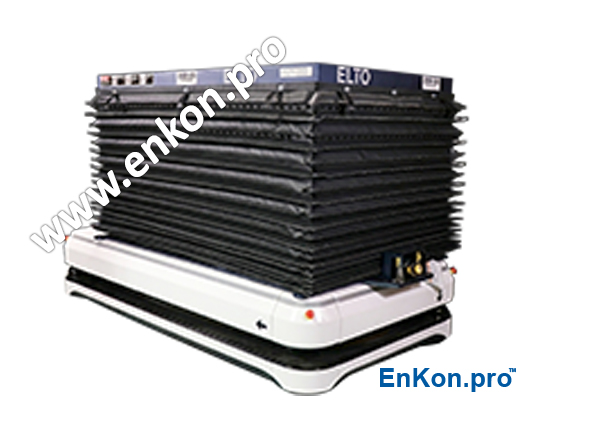

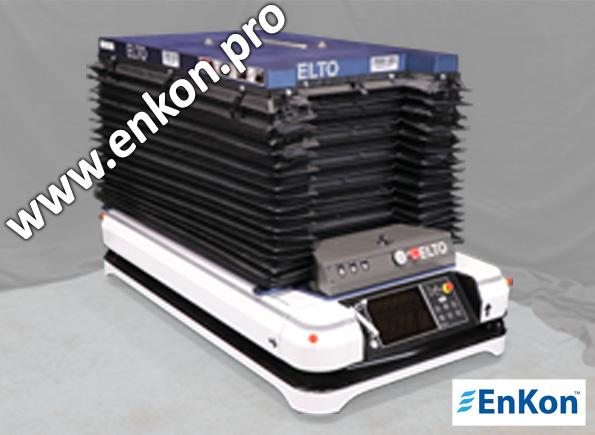

Custom Safety Bellows Skirting for AMRs and AGVs

EnKon designs custom, high-flexibility accordion skirting tailored specifically to the unique footprint and movement of your Autonomous Mobile Robots (AMRs) and Automated Guided Vehicles (AGVs).

• Advanced Protection:  Shields sensitive LiDAR sensors, electronics, and drive systems from debris, while fully enclosing lower mechanical pinch points to protect nearby workers.
• Tailored Engineering:  Custom-built to accommodate specific vehicle turn radiuses, sensor viewing fields, lift extensions, and anti-static (ESD) or cleanroom requirements.
• Zero-Downtime Maintenance:  Features quick-access Velcro or magnetic seams for fast battery swaps and routine vehicle inspections without removing the entire skirt.
• Industrial Durability:  Built with structural framing to prevent sagging or dragging during high-speed, multidirectional travel.
