Technology Electric Ball Screw Lifts | Scissor Lift Tables

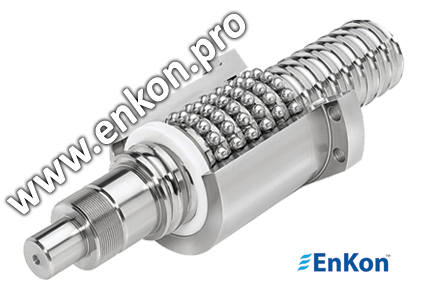

Ball Screw Scissor Lift Tables
Engineered and Manufactured by EnKon, an Innovative Industry Leader

Enkon Systems Ball Screw Scissor Lift Tables are designed and built based on countless hours of knowledge from industrial applications. When your application requires lift tables to perform a specific way with respect to size, capacity, speed, duty cycle, safety features, etc. Enkon Systems will have a scissor lift that will meet your needs.

Enkon Systems' Electric Lifts provide precision control at all positions and speeds. Features such as long-standing static positioning and accurate repeatability allow maximum control in a variety of production applications

A Michigan-Based Company
EnKon Lifts are Proudly Designed and Manufactured in the USA

Precision controlled
+/- .03 (.76 mm)

Anti-fall device - hydraulic cylinder with velocity fuse

Double nut system with limit switch control to lock the lift for extra safety

Controlled descent device
meeting ANSI standards

Angular contact bearings for high performance under axial loads

Extremely low maintenance requirements

Patented technology

Features and Benefits

Safety Locking Systems
Double nut system (ACME screw) for anti-fall in the event the load bearing nut fails
Catch nut system (Ball screw) for anti-fall in the even t the load bearing nut fails
Hydraulic cylinder with velocity fuse locks the lift at infinite positions or controlled descent
Mechanical ratchet lock arm or leg locks the lift at multiple fixed positions
Multiple belt system with limit switches
Full redundant belt integrated with controls for anti-fall in the event the primary belt fails
Fast acting motor brake
Electromotive Force (EMF) controls

Precision controlled
for accurate repeatability.
Professionally engineered
for performance maximization and versatility in integration.
All purpose lifting capacities
from 100 pounds (45 kg) up to 50,000 lbs (22,680 kg).
High-strength steel welded construction. Built to safety factors required
by customer’s application
complies with ANSI MH29.1-1994.
High duty cycle
for reliability.
PTFE (polytetrafluoroethylene) overlay on bearings at all
pivot points and self-lubricating
for high loads and long life.
Speed easily controlled with Variable Frequency Drives (VFD)
for smooth lift acceleration and deceleration.
Limit switch or encoder sensing options
for accurate positioning.
Long standing static positioning
for maintaining a load position indefinitely.
Integrates well with robotics, conveyors, skillet systems,
machine builders, workstations and production assembly lines
for ease of use.
Compatible with alternating current AC or direct current DC motors
for versitility.
Clean and green technology -- places the power of the
motor where it is used for less power consumption and
cleaner environment.
Low noise level decibel
for meeting OSHA standards for work environment safety.
All surfaces cleaned, primed and coated with
enamel based acrylic paint.
Safety skirting - Accordion style
to protect from pinch points and debris.

Safety toe stop to stop
the lift’s downward movement immediately.
