Herkules’ Lift Systems Are Utilized by NASA for the Ares I-X Constellation Program
Key Technical Specifications
- Weight Capacity: Rated at 8,000 lbs max (strictly center-loaded configuration).
- Vertical Travel: Raises from a 16.25” lowered height to a 107” maximum extended height.
- Platform Footprint: Large 68.35” x 44” workspace frame integrated with a 40.75” tall riser.
- Surface Finish: Precision 125 micro-inch smooth finish to safely interface with parachute components.
- User Interface: Hand controller conveniently mounted on a dedicated, base-welded pedestal.
- Safety Features: Built-in mechanical lockout mechanism and an internal pressure relief valve.
- Enhanced Protection: High-visibility safety orange finish complete with a 12-point bolted bellows skirt.
Custom Aerospace Engineering

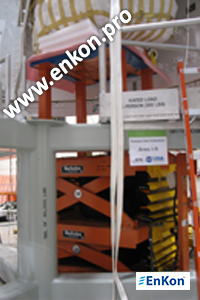

Enkon, Herkules’ leading lift brand was selected by United Space Alliance (USA) to support NASA’s Ares I-X Constellation program. To facilitate the mission, the team designed and manufactured three highly specialized, portable pneumatic lift systems. The systems enabled aerospace engineers at the Kennedy Space Center in Cape Canaveral, Florida, to accurately and securely load 2,400-pound parachutes into the booster rockets. These massive parachutes are deployed 123 seconds after lift-off during first-stage separation.
Stringent Safety & Design Specifications
The engineering team built the systems to meet strict NASA safety standards, incorporating a required three-times safety factor. Herkules successfully addressed unique safety challenges created by the combination of a small footprint and high vertical travel. Built-in fork pockets ensure the entire system can be easily transported directly to where it is needed on the floor.
“It was great to see things come together as planned! Thank you again for all the support.” wrote the USA Ares 1st Stage GSE IPT Lead.
Patented Air Bag™ Technology
Powered by Herkules’ proprietary Air Bag™ technology, the lift systems feature a patented, direct 1:1 lift ratio. This design minimizes wear by eliminating stress on the scissor mechanism, ensuring a smooth, stable lifting motion. The heavy-duty air bags are fluid-free and virtually maintenance-free, offering a reliable alternative to traditional hydraulic cylinders.
Trusted Manufacturing Partner
For over 40 years, Herkules Equipment Corporation has manufactured advanced scissor lifting equipment, including belt drive, ball screw, pneumatic, hydraulic in both standard and custom tables versions. All Herkules products are proudly engineered and manufactured near Detroit in Walled Lake, Michigan.
